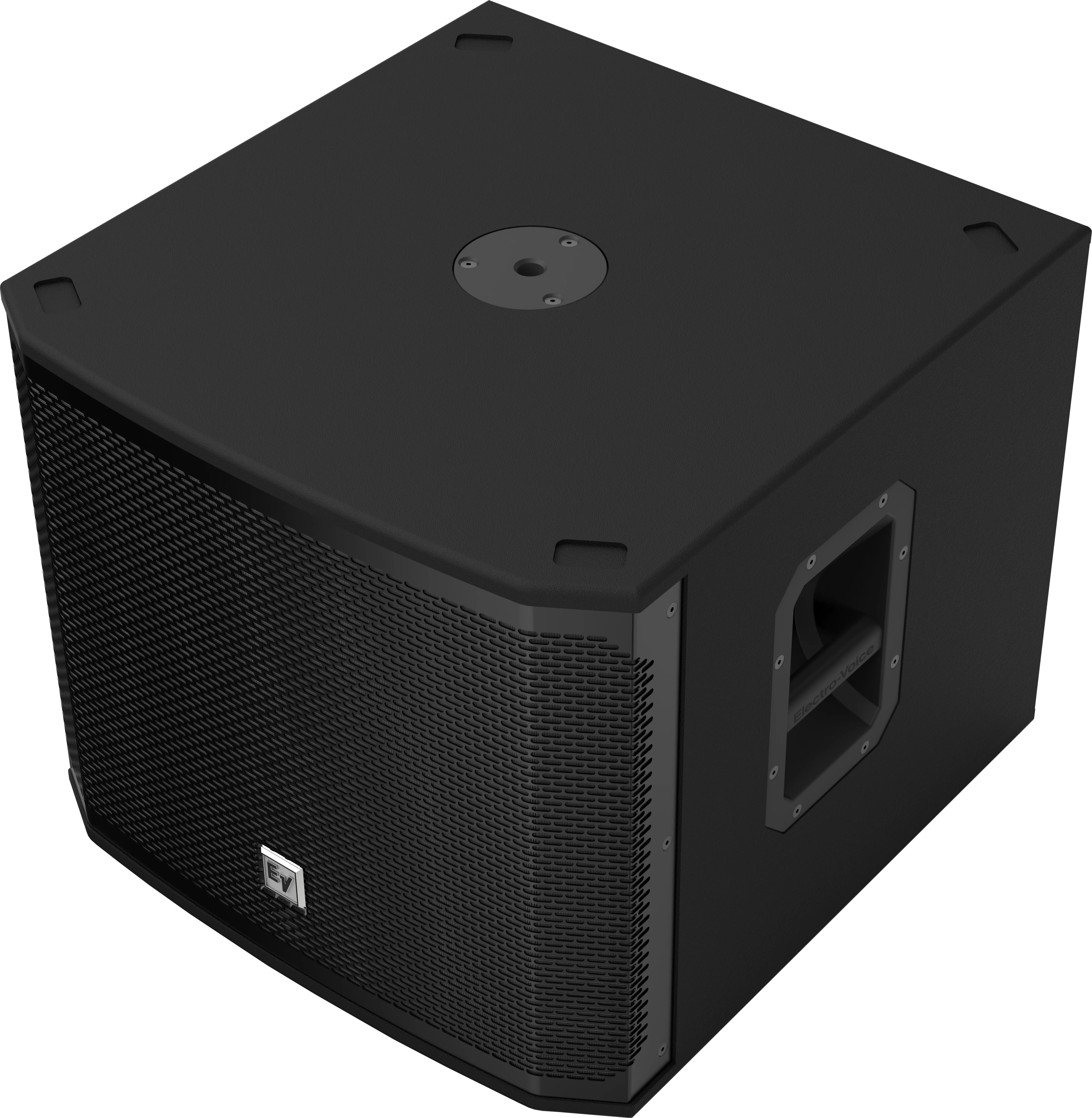

Electric-Voice EKX-15S 15" PASSIVE SUBWOOFER
- 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on the EKX-18S).
- M20 threaded pole mount plate.
| Frequency Range (-10 dB) | 40 Hz - 300 |
| Minimum Impedance | 7.5 |
| Speaker Type | Subwoofer |
| Woofer Size | 15 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 60 Hz - 100 |
SPECIFICATIONS |
|
| Max. SPL/1m (calc)² | 133 |
| LF Transducer | EVS-15C 381 mm (15 in) |
| Power Rating | 1600 |

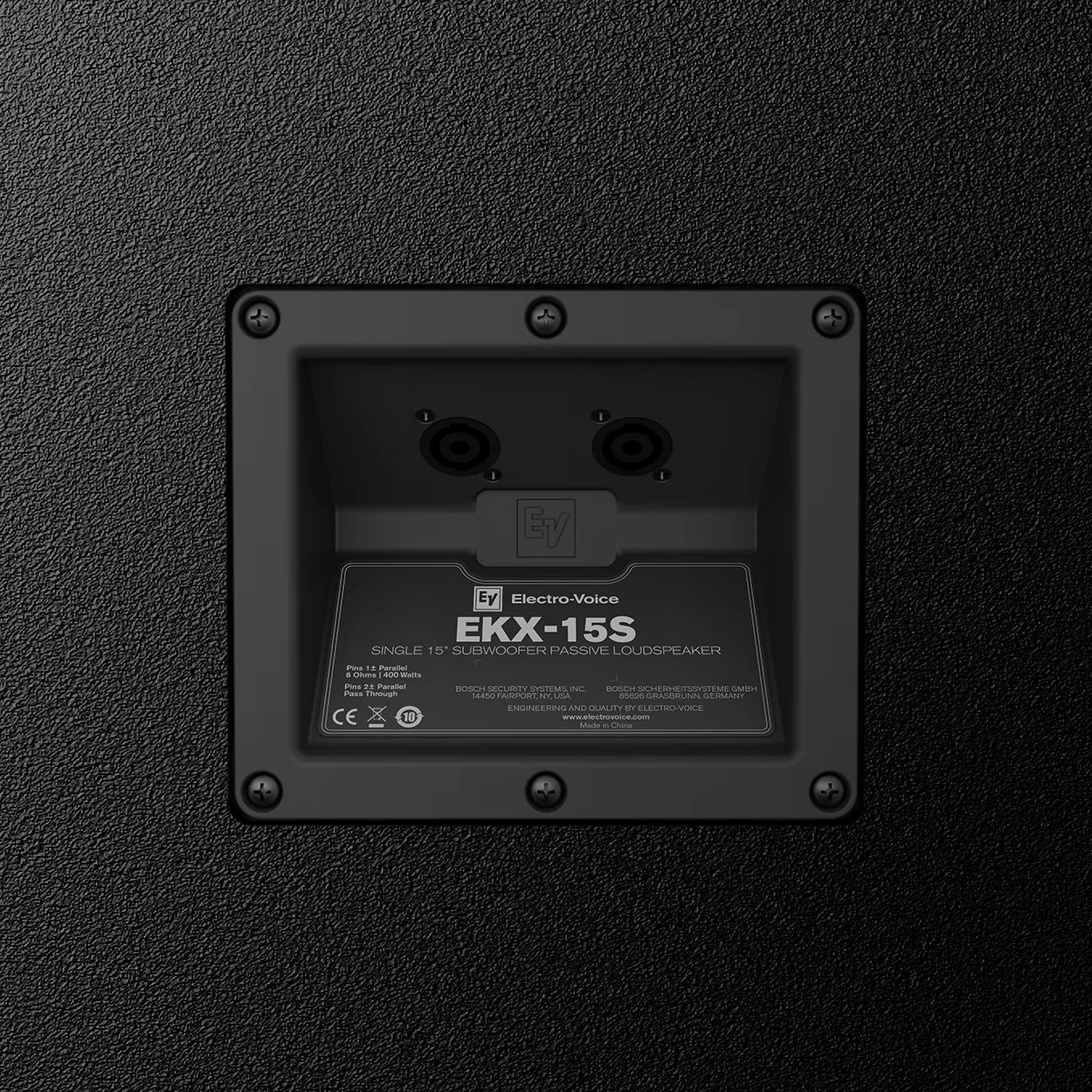

| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Height | 455 |
| Width | 530 |
| Recommended High-Pass Frequency | 35 |
| Depth | 551 |
| Weight Net | 24.9 |
| Shipping Weight | 31.3 |
| Family | EKX |
| Passive Power Handling | 1600 |
| Nominal Impedance | 8 |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95 |
| Power Handling (Continuous / Peak) | 400 W/1600 |
| Maximum SPL | 133 |
$1,379.00
Electric-Voice EKX-15S
15" PASSIVE SUBWOOFER—
$1,379.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on the EKX-18S).
- M20 threaded pole mount plate.
| Frequency Range (-10 dB) | 40 Hz - 300 |
| Minimum Impedance | 7.5 |
| Speaker Type | Subwoofer |
| Woofer Size | 15 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 60 Hz - 100 |
SPECIFICATIONS |
|
| Max. SPL/1m (calc)² | 133 |
| LF Transducer | EVS-15C 381 mm (15 in) |
| Power Rating | 1600 |
| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Height | 455 |
| Width | 530 |
| Recommended High-Pass Frequency | 35 |
| Depth | 551 |
| Weight Net | 24.9 |
| Shipping Weight | 31.3 |
| Family | EKX |
| Passive Power Handling | 1600 |
| Nominal Impedance | 8 |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95 |
| Power Handling (Continuous / Peak) | 400 W/1600 |
| Maximum SPL | 133 |
